Tutorial: Convert a Photo to a Sand Table Pattern

This tutorial walks through converting a photograph into a single continuous path that a kinetic sand table can trace. By the end you will have a .thr file ready to upload to your table.

All processing happens in your browser – no images leave your device.

1. Open the app

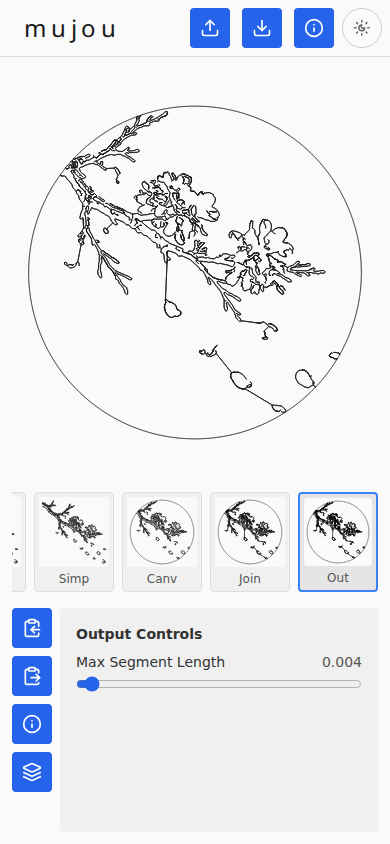

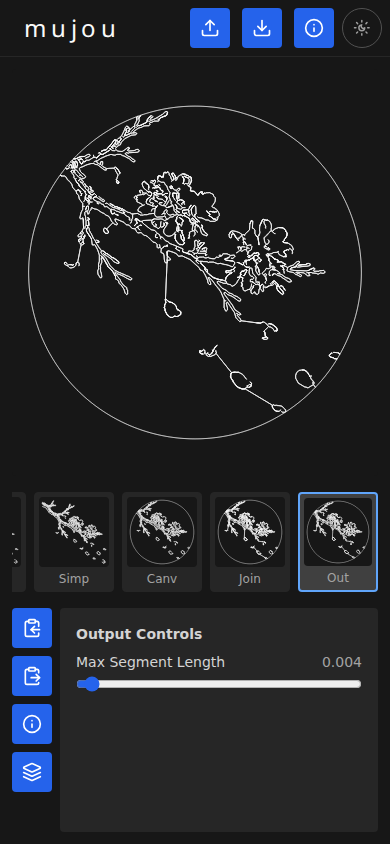

When you first open mujou the bundled example image (cherry blossoms) is already processed and the Output stage is selected. The main preview shows the final path clipped to a circular canvas, the filmstrip along the bottom shows thumbnails for each pipeline stage, and the controls panel below offers per-stage parameters.

To use your own image, click the upload button at the top of the page, or drag and drop a file anywhere. PNG, JPEG, BMP, and WebP are supported.

2. View the original photo

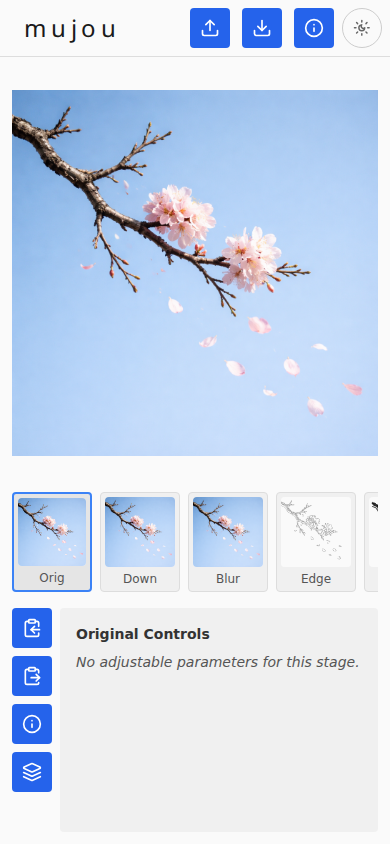

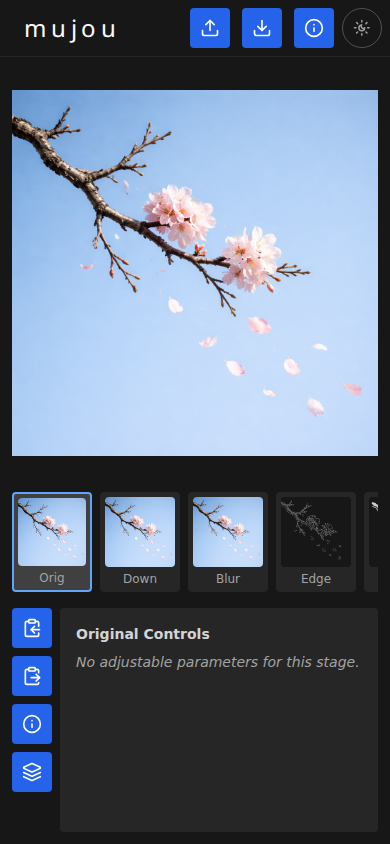

Click the Original thumbnail in the filmstrip to see the source image. This is the unmodified photo that the pipeline starts from.

3. Tune the edge detection

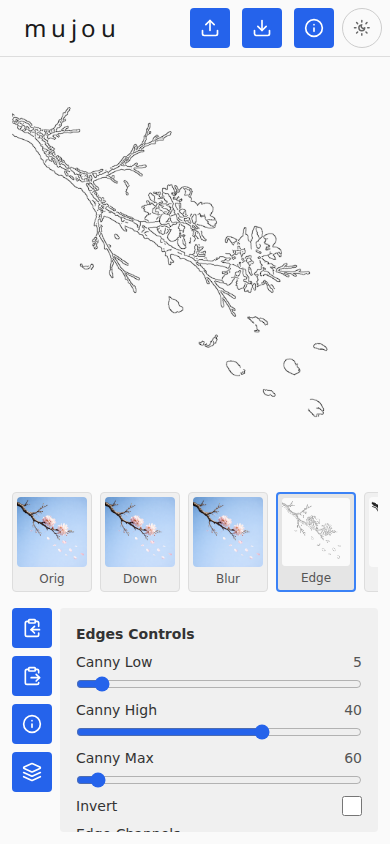

Click the Edges thumbnail. The Canny edge detector finds the outlines in your image – these are the lines the sand table will trace. Below the preview you can see the Canny threshold sliders, an Invert toggle, and Edge Channels checkboxes.

The three threshold sliders control which edges are kept:

• Canny Low – minimum gradient strength to consider a pixel as a potential edge.
• Canny High – gradient strength above which a pixel is definitely an edge.
• Canny Max – the maximum possible gradient value (normalizes the scale).

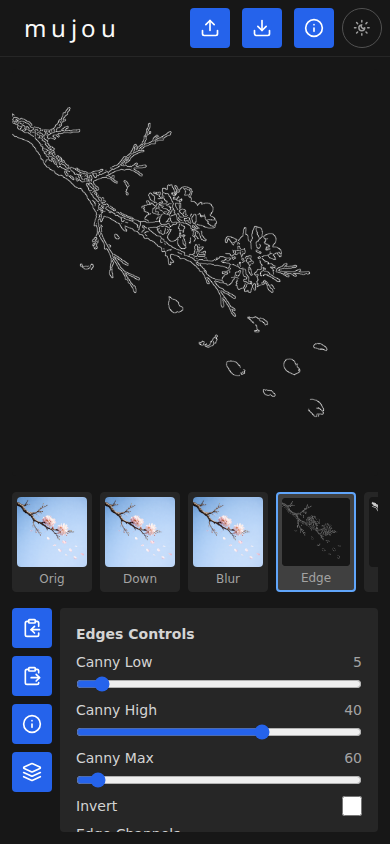

Try lowering Canny Low (here set to 5, down from the default of 15) to keep weaker edges and capture more detail. The pipeline reprocesses automatically after each change.

4. View the joined path

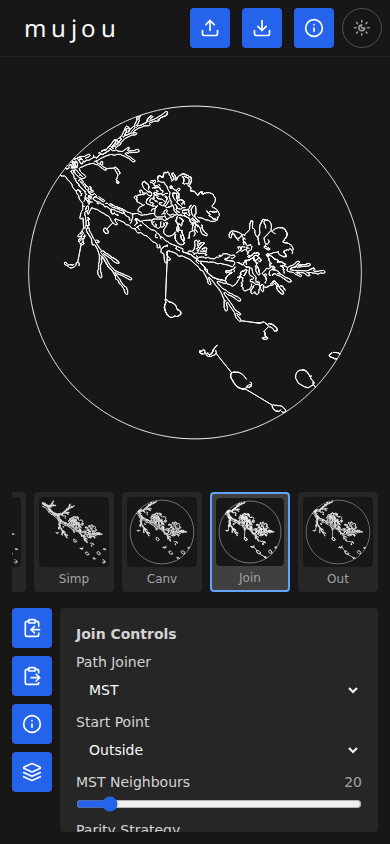

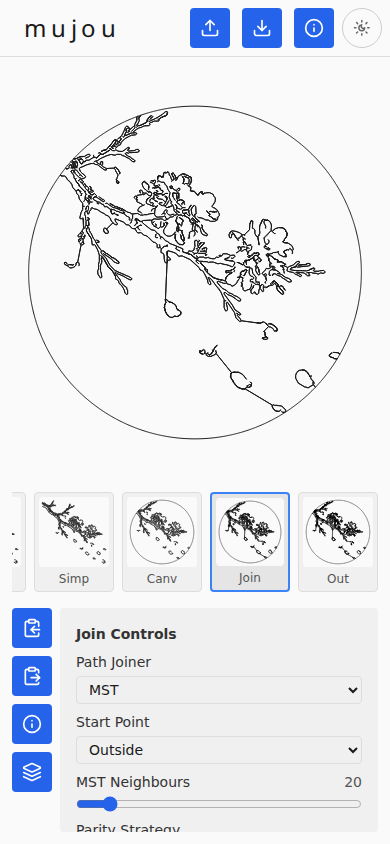

Click the Join thumbnail. This is where the magic happens: the MST (Minimum Spanning Tree) joiner connects all the separate edge contours into a single continuous path. A sand table ball cannot be “lifted,” so the entire output must be one unbroken line.

The Join Controls panel offers options for the joining strategy, start point, MST neighbour count, and parity strategy.

5. Inspect the join diagnostics

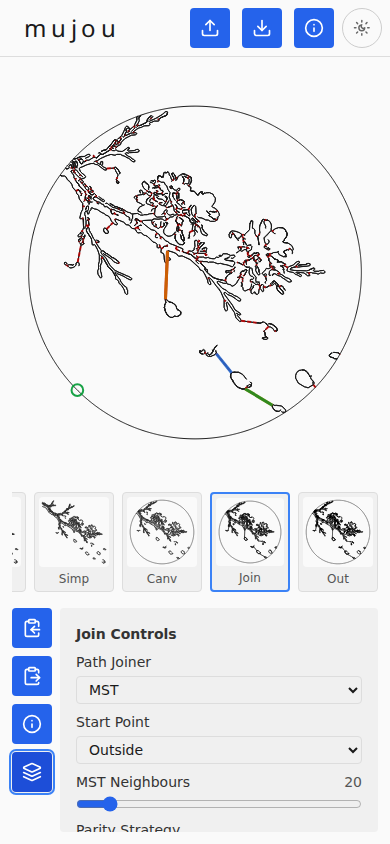

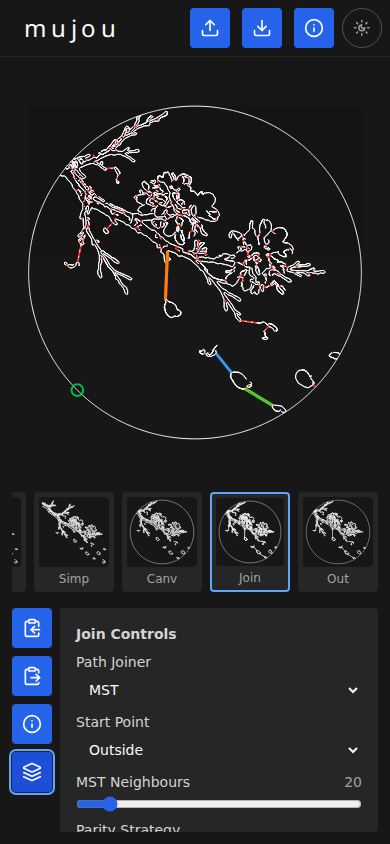

While viewing the Join stage, click the diagnostic overlay button on the left side. The overlay color-codes the connections between contours so you can see exactly how the paths were joined:

• Red dots mark endpoints of original contours.
• Colored segments (orange, blue, green) show the connecting paths added by the joiner.
• Green circle marks the start point of the path.

6. View the final output

Click the Output thumbnail to see the finished path. This stage applies subsampling (subdividing long straight segments into shorter ones) so the path renders smoothly when converted to the polar coordinate system used by THR files.

7. Export to THR

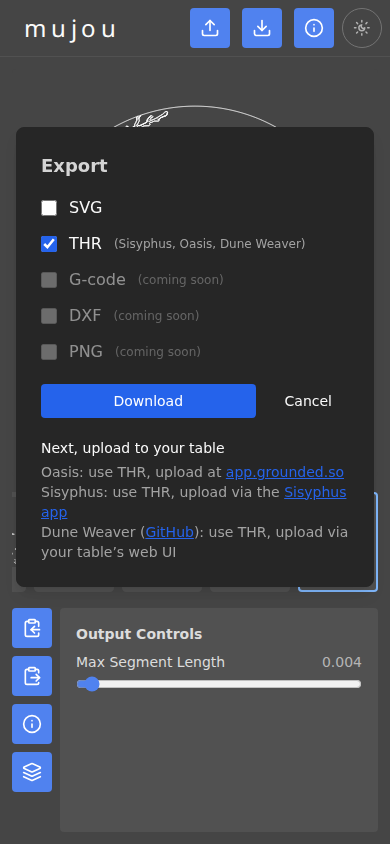

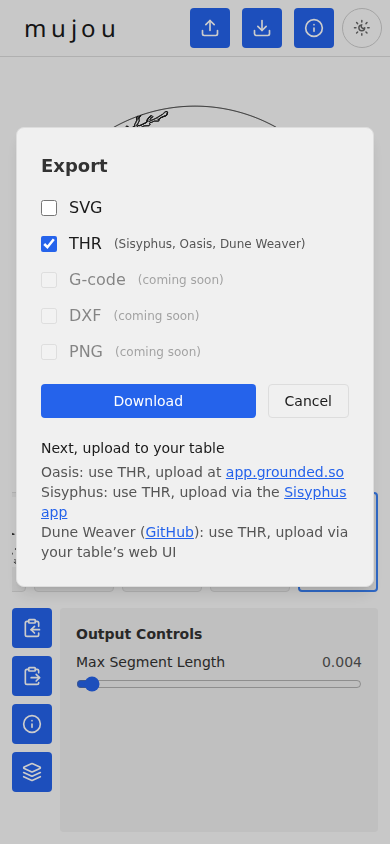

Click the export button at the top of the page. In the Export dialog:

1. Check THR (it should be checked by default).
2. Click Download.

The browser will download a .thr file containing your pattern in polar coordinates.

8. Load onto your table

Upload the downloaded file to your sand table:
